wifi6和蓝牙5.2低功耗soc模块介绍

作者： 飞易通 时间：2023-05-16 14:55

BW256是一款WiFI6 SOC模块，是飞易通公司2023年主打产品，Low‐Energy 2.4/5GHz Wi‐Fi6/BT5.2 SoC

1.1 Wi‐Fi 特性

CMOS single-chip fully-integrated RF Modem and MAc

Wi-Fi 6 support 2.4GHz/5GHz Frequency band

The highest data rate is 286.8Mbps@TXand229.4Mbps@RX,and the bandwidth is 20/40MHz

RX sensitivity under 11b 1M mode-98dBm

Tx power up to 20dBm in 11b mode up to 18dBm in HT/VHT/HE40 MCS7 mode

Support STA,APWi-Fi Direct mode at the same time

Support STBC,beamforming

Support Wi-Fi6 TWT

Support two NAVs,buffer reportspace reuse

Multi-BSSID, power saving in PPDU

Support LDPC

Support MU-MIMO,OFDMA

Support DCM,medium code,UORA

Support WEP/WPA/WPA2/WPA3-SAE Personal

MFP Frequency band

1.2 蓝牙 5.2 特性

Supports all the mandatory and optional features

of Bluetooth 2.1+EDR/3.0/4.x/5

Supports advanced master and slave topologies

1.3 CPU 特性

Integrated Cortex-M4F CPU with MPU and FPU

CPU speed up to 480Mhz

On-chip memory includes 992KB SRAM and 752KB ROM

Supports SDIO/SPI/USB2.0

Integrated hardware crypto accelerator

AES/RSA/HASH/ECC

Integrated True Random Number Generator

Support external OPI SDR/DDR PSRAM

Integrated 128mbits SPI flash

Integrated UART/12S/12C/PWM/SPI/SDMMC

Integrated watchdog Support free ROTS

主要应用如下：

主要应用于打印机、储能设备、车载设备、窗帘控制器、带WIFI智能设备等。

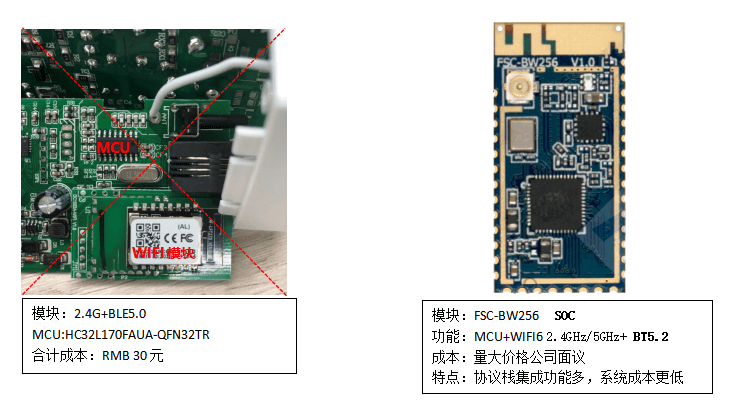

案例分享：
